OZ ANCHOR

KNOTLESS

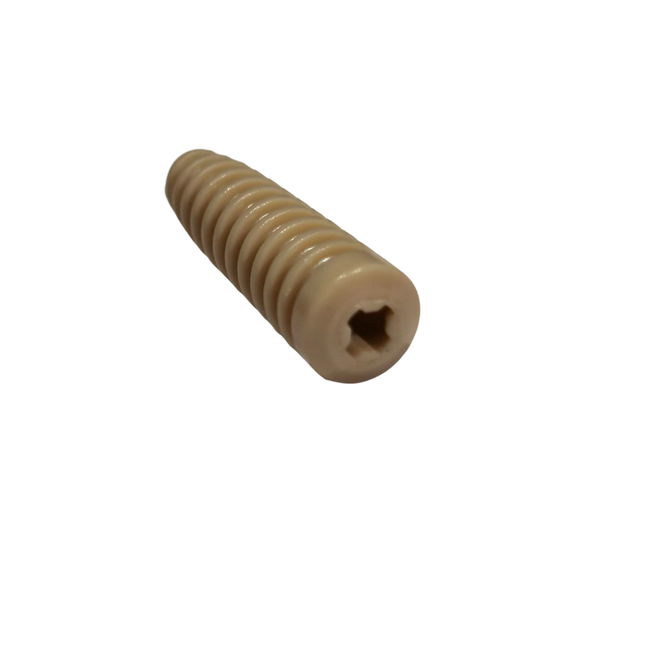

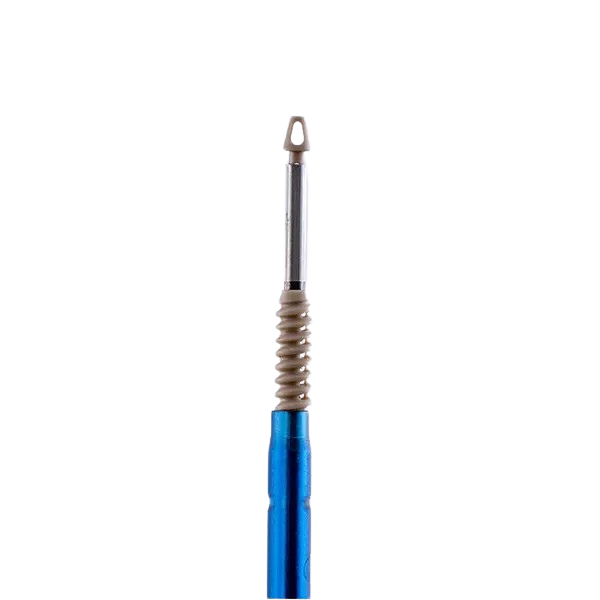

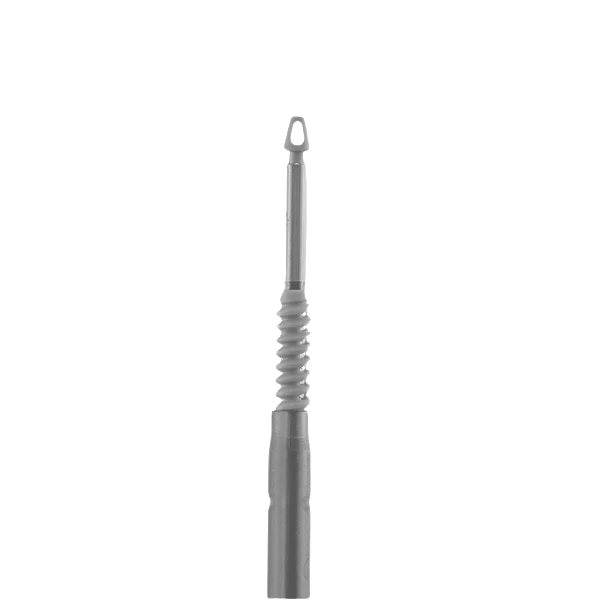

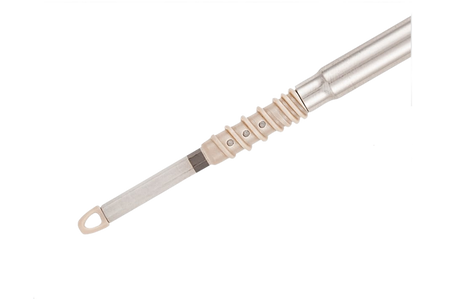

OZ ANCHOR KNOTLESS

• Single or lateral row knotless anchor
• Lower knot profile medially and completely knotless laterally
• No arthroscopic knot tying
• Compression of a larger area of rotator cuff footprint to bleeding bone bed than a single row technique
• Self-tensioning screw-in anchor that can be backed out if desired tension is not met Cannulation allows blood and platelets to be channeled through anchor body
• Up to four #2 sutures can be loaded through the inserter

ORDERING INFORMATION

PRODUCT

OzAnchor Knotless All Suture 4.5 mm

MATERIAL SPECIFICATIONS

Implant

Poly Ether Ether Ketone (PEEK)

REF NUMBER

AOC - OAK - U- 0045

OZ ANCHOR

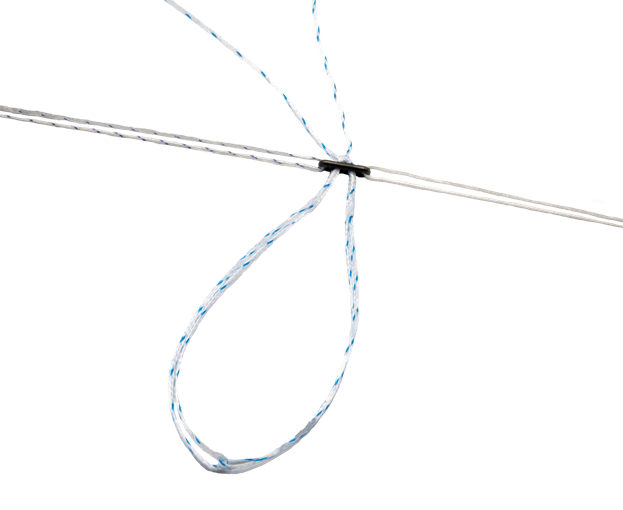

OZ ANCHOR ALL SUTURE

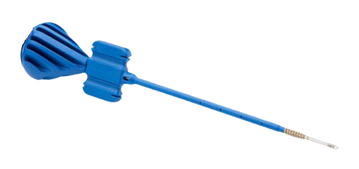

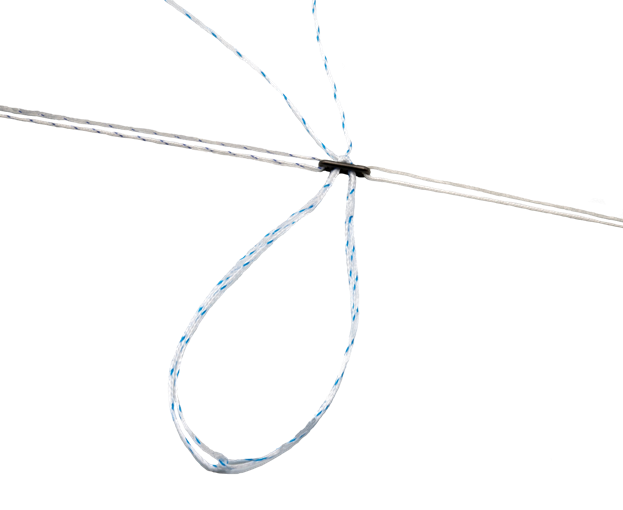

OZ ANCHOR ALL SUTURE is an all suture anchor smaller in size that does not mitigate strength. The OZ ANCHOR ALL SUTURE Soft Ligament Anchor is composed of ultra-high molecular weight polyethylene (UHMWPE) suture and is available in 1.4 mm (single loaded) and 2.5 mm (double loaded) sizes. OZ ANCHOR ALL SUTURE requires a smaller pilot hole compared to traditional anchors, minimizing bone removal and decreasing the overall anchor footprint, while still providing superior strength. The OZ ANCHOR ALL SUTURE anchor is available with flexible driver for easy insertion through curved sleeve.

The curved and straight sleeves of OZ ANCHOR ALL SUTURE enable delivery around a curve and perpendicular placement for posterior SLAP and inferior Bankart repairs.

The drill ensures accurate pilot hole placement with both straight and curved sleeves.

OZ ANCHOR ALL SUTURE

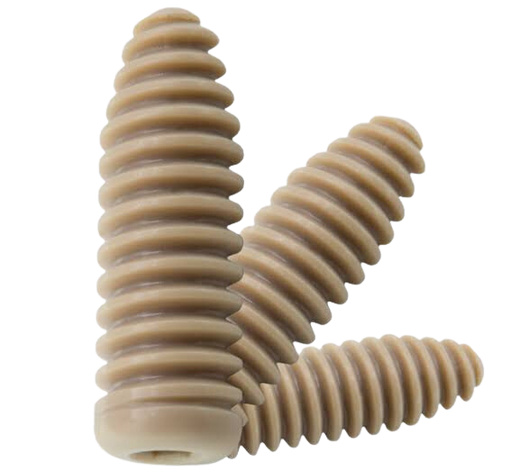

OZ SCREW

OZ SCREW

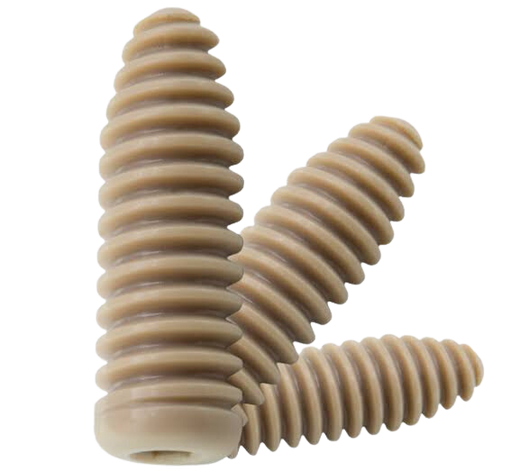

OZ Screw is an interference screw with rounded threads and a unique, first of its kind Vari-Pitch design that offers superior fixation control.

The OZ Screw is supplied as a a PEEK (Polyether Ether Ketone)

The OZ Screw is indicated for use in the fixation of ligaments and tendons in

patients requiring ligament or tendon repair.

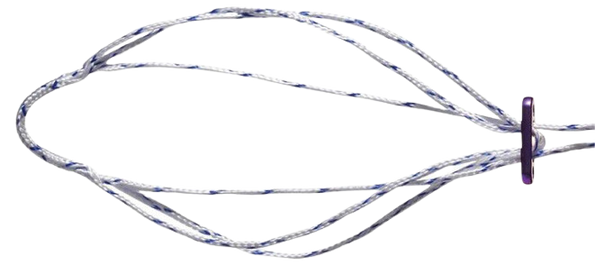

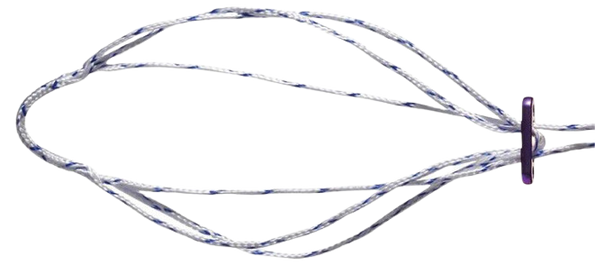

OZ LOOP

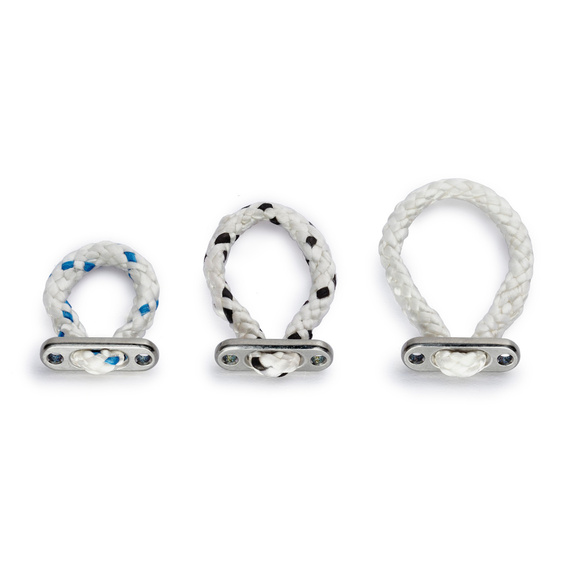

OZ LOOP

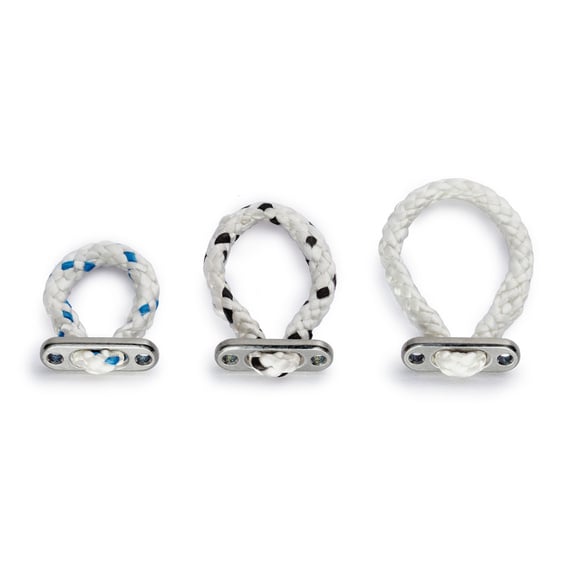

OZ Loop is the implant of choice for femoral fixation for surgeons performing ACL reconstruction. OZ Loop is ideal for anatomic or traditional ACL reconstruction techniques.

OZ Loop is supplied as a titanium base plate with high-strength, braided, polyethylene polyblend sutures. It is provided single-use and EO Sterilized.

It is indicated for use in the fixation of ligaments and tendons in patients requiring ligament or tendon repair.

Thoughtful & Efficient

Preloaded with OZ Fibre #5 lead suture (white) and OZ Fibre #5 flipping suture (white/black) for increased procedural efficiency.

Accommodates various tunnel lengths

A standard sized titanium base is available with multiple, pre-measured loop sizes – 15 mm to 55 mm to accommodate the shorter femoral tunnels commonly found in anatomic ACL reconstruction techniques. The varying loop lengths also allow the surgeon to maximize the amount of graft in the tunnel.

Reliable strength for better repair, with minimal graft stress

The OZ Loop does not require adjustments after fixation, unlike adjustable loop suspensory fixation devices. With the most firm and thick loop currently available in the market, OZ Loop ensures better graft positioning and tensioning, with minimal graft stress and damage.

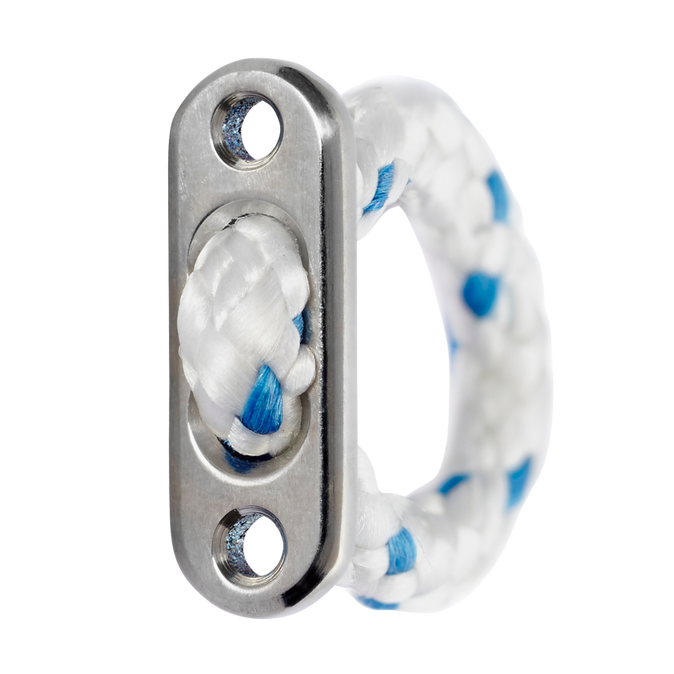

OZ LOOP

ADJUSTABLE

OZ LOOP ADJUSTABLE

Adjustable Suture

• Enables calibrating the loop to its optimum size.
• Allows the surgeon to maximize the amount of tendon in the femoral tunnel, thereby optimizing the graft-tunnel healing interface and the chance of a successful outcome.

Titanium Button

• Strong with low profile.
• Compatible with common extension devices.

UHMWPE Suture Loop

• Provide high strength to the loop.
• As strong as Closed loop.

Graft Support Frame

• A larger and thicker surface contact with the graft.
• Protects the graft from damage and any abrasion.
